Clutch Arrangement for a 6-Speed Lepelletier Gearbox

The Lepelletier 6-Speed Actuation component is intended for use with a Ravigneaux Gear and a Planetary Gear (see Ravigneaux Gear and Planetary Gear). The internal structure of this component is shown below. The combination of the clutches and the activation table, enables the user to easily create a 6-Speed Lepelletier Gearbox.

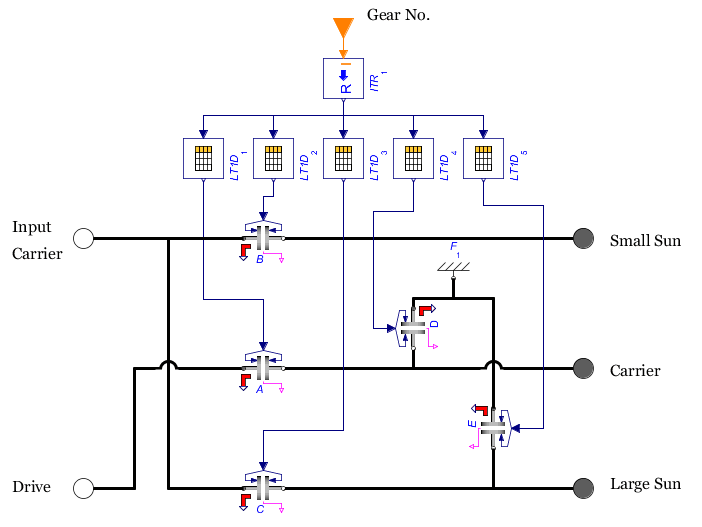

Internal Structure

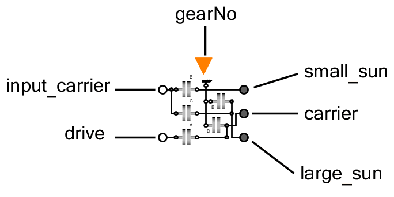

Connections

Name	Condition	Description	ID
	-	Drive shaft Flange (to be connected to ring flange of a Planetary Gear - See below)	drive
	-	input carrier shaft Flange (to be connected to carrier flange of a Planetary Gear - See below)
	-	Small Sun flange (to be connected to small sun flange of a Ravigneaux Gear)	small_sun
	-	Carrier flange (to be connected to carrier flange of a Ravigneaux Gear)	sun
	-	Large sun flange (to be connected to large sun flange of a Ravigneaux Gear)	large_sun
	-	Integer input for the gear number. (-1: Revese, 0: Neutral, 1,2,3,4,5,6: Forward)	GearNo

Parameters

Symbol	Condition	Default	Units	Description	ID
	-			Added inertia to Clutch components.	J
	-			A 8 by 6 clutch actuation table. first column is for the gear numbers (not used) ordered from -1 (reverse) to 6 (sixth gear). Zeroth gear designates neutral.	table
Clutch Parameters	See Clutch componet for the description of the clutch parameters.

Clutch Table

Gear \ Clutch	A	B	C	D	E

6-Speed Lepelletier Gearbox

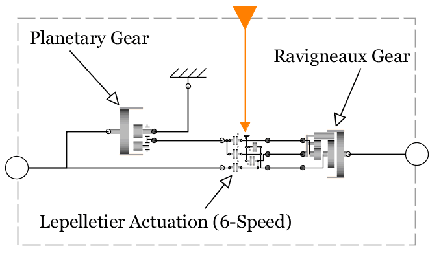

The figure below shows how to create a 6-Speed Lepelletier gearbox using a Planetary Gear, a Ravigneaux Gear, and a Lapelletier 6-Speed Actuation component.
