complexplot3d



create a 3-D complex plot



Calling Sequence

Parameters

Description

Examples

Compatibility

Calling Sequence

complexplot3d([expr1, expr2], x=a..b, y=c..d)

complexplot3d([f1, f2],  a.. b,  c.. d)

complexplot3d(expr3, z=a + b*I..c + d*I)

complexplot3d(f2, a + b*I..c + d*I)

Parameters

expr1, expr2

-

algebraic; expressions in parameters x and y

f1, f2

-

procedures; functions to be plotted

expr3

-

algebraic; expression in parameter z

a, b, c, d

-

realcons; endpoints of parameter ranges

Description

•

The four different calling sequences to the complexplot3d function above all define plots in three-dimensional space for expressions or procedures mapping

R2R2orCC.



For 2-D complex plots, see plots/complexplot.

•

For plotting functions from R2 to R2, complexplot3d plots the first component while coloring the graphic using the second component.

•

For plotting functions from C to C, complexplot3d plots the magnitude of the function while coloring the resulting surface using the argument of the function.

•

The first two calling sequences plot expressions and procedures, respectively, from R2 to R2. In the second case f1 and f2 take two arguments and return a real value. The form of the range specifications determine whether an expression or a procedure is to be plotted. The last two calling sequences plot expressions and procedures, respectively, from C to C.

•

The range components a, b, c, and d must evaluate to real constants. Note that operator notation is used in the second and fourth calls, that is, the procedure name is given without parameters specified, and the ranges must be given simply in the form a..b, rather than as an equation.

•

The complex plots colored by argument have a color bar displayed by default. It can be suppressed by adding colorbar=false to the arguments.

•

Any additional arguments are interpreted as options as described in the plot3d/option help page.  For example, the option grid=m,n where m and n are positive integers specifies that the plot is to be constructed on an m by n grid instead of on the default 25 by 25 grid.

Examples

withplots:

Plot a complex procedure:

fzsecz

fzsecz

(1)

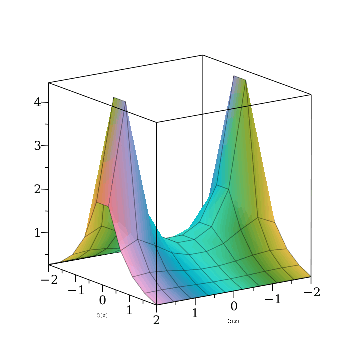

complexplot3df,22I..2+2I

Plot an expression from R2 to R2, where the plot is of the first component colored by the second component:

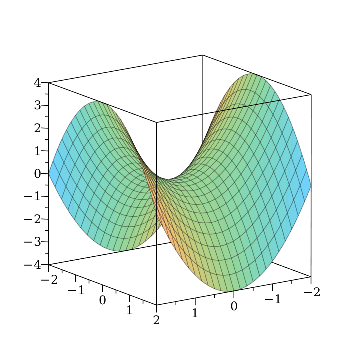

complexplot3dx2y2,2xy,x=2..2,y=2..2

Repeat the previous example using operator form.

f1x,yx2y2;f2x,y2yx

f1x,yx2y2

f2x,y2yx

(2)

complexplot3df1,f2,2..2,2..2

Plot an image created from Newton's iteration:

fzzz323z2

fzzz323z2

(3)

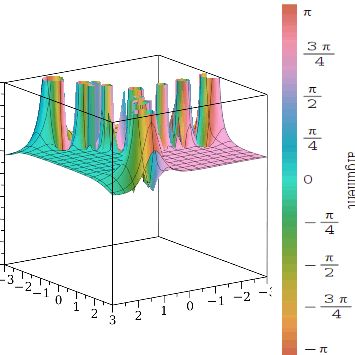

complexplot3df4,33I..3+3I,view=4..4,grid=50,50

Plot fz, where z=rⅇIθ and fz=zⅇz1, in cylindrical coordinates, with r ranging from 0 to 10 and theta from 0 to 2π.

g := proc(z) local w; w := Re(z)*exp(Im(z)*I); w/(exp(w)-1) end proc:

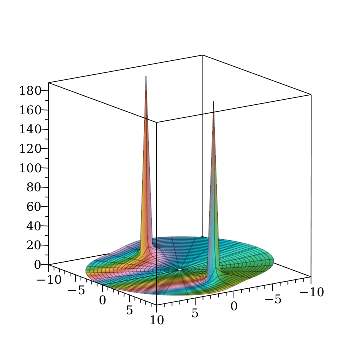

changecoordscomplexplot3dg,0..10+2πI,axes=boxed,cylindrical

Other colorings are supported with the colorscheme option

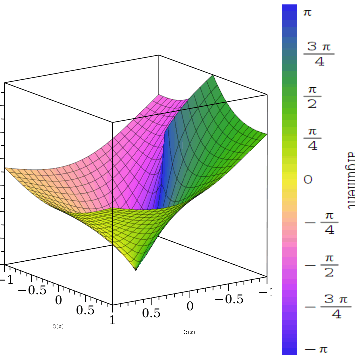

complexplot3dLambertWz,z=1I..1+I,colorscheme=Colorwheel

The command to create the plot from the Plotting Guide is

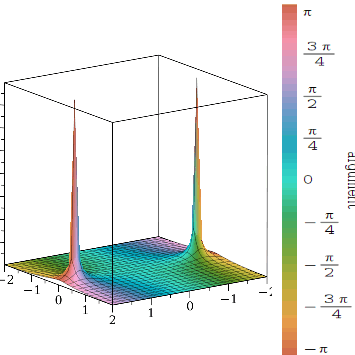

complexplot3dsecz,z=22I..2+2I,grid=10,10,colorbar=false

Compatibility

•

The plots[complexplot3d] command was updated in Maple 2024.

•

The colorbar option was introduced in Maple 2024.

•

For more information on Maple 2024 changes, see Updates in Maple 2024.
