TimeSeriesAnalysis

 Decomposition
 decompose a time series into level, residuals, and potentially trend and seasonal components

 Calling Sequence Decomposition(model, ts, extraparameters)

Parameters

 model - ts - Time series consisting of a single data set extraparameters - (optional) table of parameter values

Description

 • The Decomposition command takes a time series and decomposes it according to an exponential smoothing model.
 • It returns a time series with two, three, or four data sets in it: one for the level, one for the residuals, if the model has a trend component then one data set for the trends, and if the model has a seasonal component then a data set for the seasonal component.

Examples

 > with(TimeSeriesAnalysis):

Consider the following time series. It represents international tourist visitor nights in Australia.

 > ts := TimeSeries(<41.7, 24.0, 32.3, 37.3, 46.2, 29.3, 36.5, 43.0, 48.9, 31.2, 37.7, 40.4, 51.2, 31.9, 41.0, 43.8, 55.6, 33.9, 42.1, 45.6, 59.8, 35.2, 44.3, 47.9>, startdate="2005", frequency=quarterly, header="Visitor nights");
 ${\mathrm{ts}}{≔}\left[\begin{array}{c}{\mathrm{Time series}}\\ {\mathrm{Visitor nights}}\\ {\mathrm{24 rows of data:}}\\ {\mathrm{2005-Jan-01 - 2010-Oct-01}}\end{array}\right]$ (1)

Fit an exponential smoothing model to it.

 > esm := ExponentialSmoothingModel(ts);
 ${\mathrm{TimeSeriesAnalysis}}{:-}{\mathrm{ExponentialSmoothingModel}}{}\left({\mathrm{errors}}{=}\left\{{"M"}\right\}{,}{\mathrm{trend}}{=}\left\{{"A"}\right\}{,}{\mathrm{seasonal}}{=}\left\{{"M"}\right\}{,}{\mathrm{α}}{=}{0.4836790988889591}{,}{\mathrm{β}}{=}{0.0003088251694408857}{,}{\mathrm{γ}}{=}{0.00023143579040411943}{,}{\mathrm{φ}}{=}{1.}{,}{\mathrm{period}}{=}{4}{,}{\mathrm{l0}}{=}{31.691916154639692}{,}{\mathrm{b0}}{=}{0.6527296503176275}{,}{s}{=}\left(\left[\begin{array}{c}1.2641437853861655\\ 0.7602113492955748\\ 0.946057915985054\\ 1.0295918919494698\end{array}\right]\right){,}{\mathrm{σ}}{=}{0.03343189749472918}{,}{\mathrm{constraints}}{=}{"both"}\right)$ (2)

Create the decomposition. Since this is a model with both trend and seasonal components, you get four data sets.

 > dc := Decomposition(esm, ts);
 ${\mathrm{dc}}{≔}\left[\begin{array}{c}{\mathrm{Time series}}\\ {\mathrm{Visitor nights \left(residuals\right), ..., Visitor nights \left(seasonal\right)}}\\ {\mathrm{24 rows of data:}}\\ {\mathrm{2005-Jan-01 - 2010-Oct-01}}\end{array}\right]$ (3)

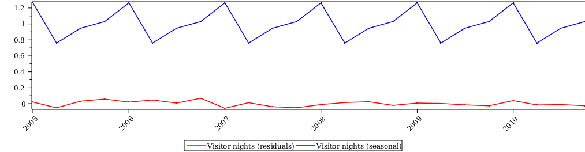

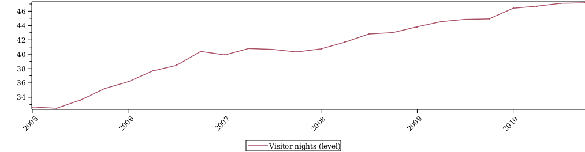

Since the error and seasonal components are multiplicative, it makes sense to display them together. The trend and level components are displayed separately.

 > TimeSeriesPlot(dc, 'split' = [[dc, 1, 4], [dc, 2], [dc, 3]], 'color = red .. blue');   >

References

 Hyndman, R.J. and Athanasopoulos, G. (2013) Forecasting: principles and practice. http://otexts.org/fpp/. Accessed on 2013-10-09.
 Hyndman, R.J., Koehler, A.B., Ord, J.K., and Snyder, R.D. (2008) Forecasting with Exponential Smoothing: The State Space Approach. Springer Series in Statistics. Springer-Verlag Berlin Heidelberg.

Compatibility

 • The TimeSeriesAnalysis[Decomposition] command was introduced in Maple 18.
