SignalProcessing



ComplexCepstrum



compute the complex cepstrum of the signal



Calling Sequence

Parameters

Description

Examples

Compatibility

Calling Sequence

ComplexCepstrum(A)

Parameters

A

-

Array of real numeric values; the signal

Description

•

The ComplexCepstrum(A) command uses the Fourier transform to compute the complex cepstrum of a signal and the number of samples of delay.

•

A must be an one-dimensional Array and must contain real numbers only.

Examples

withSignalProcessing:

f112.0:

f220.0:

Fs1000:

signalVector210,i→sinf12PiiFs+1.5sinf22PiiFs,'datatype'='float8':

tVector210,i→1.0iFs,'datatype'='float8':

c,ndComplexCepstrumsignal

c,nd0.145868794568315,−0.00210915153424983,−0.00195907093568577,−0.00178456266462854,−0.00158722980572758,−0.00136900765256120,−0.00113213114331282,−0.000879117825724025,−0.000612728339790145,−0.000335934856947447,−0.0000518692285805590,0.000236197915118234,0.000524918779904637,0.000810908961643890,0.00109079348274120,0.00136125182569238,0.00161907099400066,0.00186117875125773,0.00208470189279642,0.00228698458099978,0.00246565146703437,0.00261861936625991,0.00274413853802192,0.00284081144739502,0.00290761023539309,0.00294389874606536,0.00294943045953131,0.00292435611527912,0.00286922116621864,0.00278495305332948,0.00267284751323420,0.00253456066103722,0.00237204750856878,0.00218758607926743,0.00198369895676667,0.00176313243360697,0.00152882137405683,0.00128383474591313,0.00103134012640191,0.000774547137475045,0.000516676275508860,0.000260892407280031,0.0000102815082253819,−0.000232212523021449,−0.000463806015781688,−0.000681945070966349,−0.000884314055822069,−0.00106887244974803,−0.00123388950018436,−0.00137795715273694,−0.00150000247072595,−0.00159931422961690,−0.00167552962725953,−0.00172864562943142,−0.00175900613817886,−0.00176729411119746,−0.00175451642643904,−0.00172196622085345,−0.00167122556969059,−0.00160410857054620,−0.00152263941865678,−0.00142901279894585,−0.00132555057158262,−0.00121466676701493,−0.00109882186179677,−0.000980478121445168,−0.000862059003425795,−0.000745905236741439,−0.000634235631148726,−0.000529117005187834,−0.000432411558720843,−0.000345765536720262,−0.000270566499318680,−0.000207929575717542,−0.000158676691130008,−0.000123323294893250,−0.000102069283972729,−0.0000948081950428682,−0.000101109319635815,−0.000120250036937223,−0.000151199642665849,−0.000192693657354289,−0.000243201660821141,−0.000300946856582390,−0.000364038924773243,−0.000430369096881504,−0.000497762718130480,−0.000563960590512271,−0.000626678634850097,−0.000683638237982436,−0.000732653896321379,−0.000771600683010236,−0.000798505125887401,−0.000811615326736553,−0.000809342110631514,−0.000790358224897619,−0.000753671247829358,−0.000698496462873906,−0.000624482126442998,−0.000531518327017009,,... 924 Array entries not shown,1

(1)

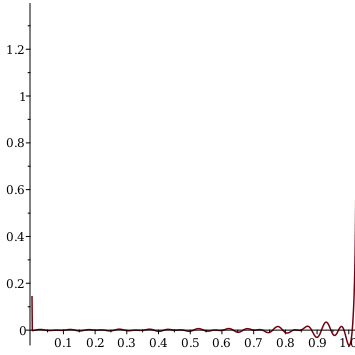

plott,c

Compatibility

•

The SignalProcessing[ComplexCepstrum] command was introduced in Maple 2019.

•

For more information on Maple 2019 changes, see Updates in Maple 2019.
