Name

Description

Modelica ID

$\mathrm{flange\_a}$

1-D Rotational angle, flange a side, angle of center of Sector

flange_a

$\mathrm{flange\_b}$

1-D Rotational angle, flange b side, angle of center of node[1] of Shape

flange_b

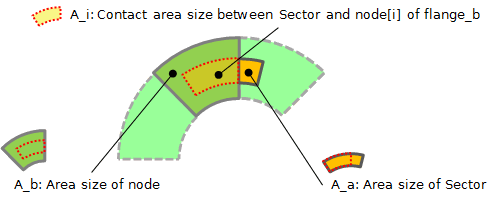

$\mathrm{Ac\_a}\left[i\right]$

Coefficient of normalized contact area ratio (0 to1) at flange a side

The total number of i is determined by Nodes b

Ac_a[]

$\mathrm{Ac\_b}\left[i\right]$

Coefficient of normalized contact area ratio (0 to 1) at flange b side

The total number of i is determined by Nodes b

Ac_b[]

$\mathrm{nc\_Ac\_a}$

Not contacted area ratio (0 to1) at flange a side

nc_Ac_a

$\mathrm{nc\_Ac\_b}\left[i\right]$

Not contacted area ratio (0 to1) at flange b side

The total number of i is determined by Nodes b

nc_Ac_b[]

Symbol

Default

Units

Description

Modelica ID

$\mathrm{\θ\_\_a}$

$\frac{\mathrm{Pi}}{4}$

rad

Center angle of Sector (≤π)

$\mathrm{theta}$

$\mathrm{Ro\_\_a}$

$1$

$m^{}$

Outer radius of the Sector

Ro_a

$\mathrm{Ri\_\_a}$

$0.5$

$m^{}$

Inner radius of the Sector

If Sector is Cylindrical Sector, input 0

Ri_a

$\mathrm{Nodes} b$

4

Number of total nodes of Shape, flange b side

$\mathrm{Nodes\_b}$

$\mathrm{Ro\_\_b}$

$2$

$m^{}$

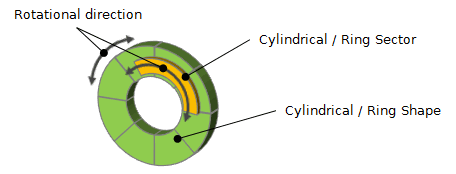

Outer radius of the Cylindrical / Ring shape

Ro_b

$\mathrm{Ri\_\_b}$

$0$

$m^{}$

Inner radius of the Cylindrical / Ring shape

If Shape is Cylindrical Shape, input 0

Ri_b
