GraphTheory[GeometricGraphs]



UnitDiskGraph



construct a unit disk graph



Calling Sequence

Parameters

Options

Description

Examples

Compatibility

Calling Sequence

UnitDiskGraph( P, f, opts )

Parameters

P

-

Matrix or list of lists representing set of points

threshold

-

(optional) positive real number

opts

-

(optional) one or more options as specified below

Options

•

norm : integer or one of Euclidean or infinity.



Specifies the norm to be used in computing distances. The default is 2, the Euclidean norm.



For more information on norms, see LinearAlgebra[Norm].

•

vertices : list of integers, strings or symbols



Specifies the vertices to be used in the generated graph.

•

weighted : true or false



If weighted=true, the result is a weighted graph whose edge weights correspond to the distance between points using the specified norm. Default is false.

Description

•

The UnitDiskGraph(P, threshold, opts) command returns a graph whose vertices correspond to points from P and in which two vertices share an edge if the distance between their corresponding points is less than or equal to threshold.

•

The optional threshold must be a nonnegative real number or infinity. If not specified, a threshold of 1 is used.

•

A value of infinity for threshold will produce a complete weighted graph on the point set P.

Examples

Generate a set of random two-dimensional points and connect edges when the Euclidean distance between them is less than or equal to 10.

pointsLinearAlgebra:-RandomMatrix60,2,generator=0..100.,datatype=float8

points9.8501769734180382.975030438619586.067018374966383.318865936399664.374679554674173.867160763967357.36705572946662.3439977588303123.623426484493352.687336738732847.002754735000322.245948836755274.921349155896362.047182022071892.151343470907396.310726263708048.231962435594463.756326714414190.944187743180533.852746491302260 × 2 Matrix

(1)

withGraphTheory:

withGeometricGraphs:

GUnitDiskGraphpoints,10

GGraph 1: an undirected unweighted graph with 60 vertices and 54 edge(s)

(2)

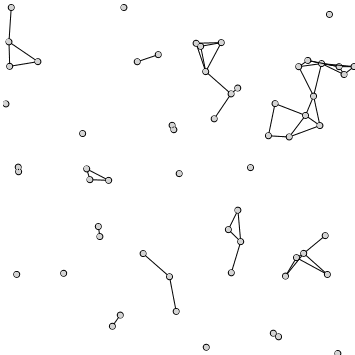

DrawGraphG

Compatibility

•

The GraphTheory[GeometricGraphs][UnitDiskGraph] command was introduced in Maple 2020.

•

For more information on Maple 2020 changes, see Updates in Maple 2020.
