Maximum Flow Rate in Open-Channel Flow for a Circular Pipe

Introduction

This application determines the greatest attainable water flow rate in a partially filled circular pipe.





It uses the Manning formula to determine the flow rate in the open-channel flow of water:

Q = 1.49nAR23S__012,

where:



•

Q is the flow rate

•

n is an empirical coefficient

•

A is the cross-sectional area of flow

•

R is the hydraulic radius

•

S0 is the incline of the channel



An equation that represents the hydraulic radius of a partially filled circular pipe is derived and substituted into the Manning formula. The resulting equation is then optimized to find the maximum flow rate.



Manning Formula for a Circular Pipe

restart:



Manning formula:

Q1.49nAR23S__012:

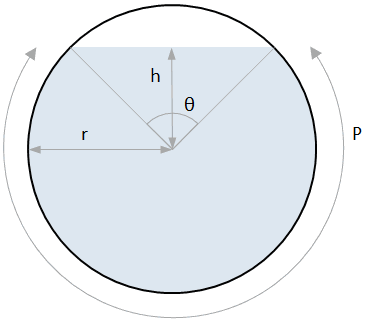

For a partially filled circular pipe, the flow area (the blue shaded area in the preceding diagram) is:

Aπr2r2θsinθ2:


The wetted perimeter is given by the following formula.

P2πrrθ:



Hence, the hydraulic radius, R, is:

RAP

Rπr2r2θ2sinθ22πrrθ

(2.1)

The Manning formula then becomes:

Q

1.49πr2r2θ2sinθ2πr2r2θ2sinθ22πrrθ23S__0n

(2.2)

Maximum Flow Rate for a Circular Pipe

Pipe radius:

r3:

Incline of the channel:

S__00.0001:

Roughness coefficient:

n0.013:

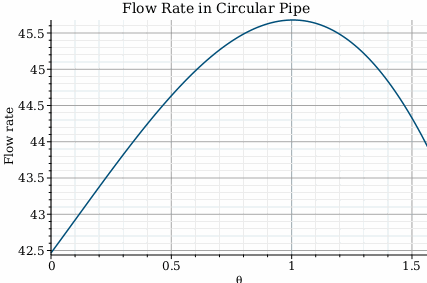

plotQ,θ=0.. 0.5 π,labels=θ,Flow rate,labeldirections=horizontal,vertical,labelfont=Calibri,title=Flow Rate in Circular Pipe,titlefont=Calibri,14,size=600,400,axesfont=Calibri,gridlines,color=ColorTools:-ColorRGB,0/255,79/255,121/255



resOptimization:-MaximizeQ,θ=0.. 0.5 π

res45.6796864427174,θ=1.00507814259573

(1)

The maximum flow rate is...

Q__maxflowres1

Q__maxflow45.6796864427174

(2)

...when θ is ...

θ__maxflowrhsres2,1;

θ__maxflow1.00507814259573

(3)

... and the flow depth is:

hrcos0.5 θ__maxflow:h+r

5.62908731621774

(4)
