Student/VectorCalculus/PlotVector - Help

Student[VectorCalculus]

 PlotVector
 plots a Student[VectorCalculus] Vector object

 Calling Sequence PlotVector(v, opts)

Parameters

 v - Vector or list(Vector); specify which Vector(s) to plot opts - (optional) plot options

Description

 • The PlotVector(v) command takes a Vector or a list of Vectors, and plots them in the appropriate form:
 – Free Vectors and rooted Vectors are plotted using plots[arrow]. Rooted Vectors are positioned correctly.
 – Vector fields are plotted using plots[fieldplot] or plots[fieldplot3d]. If one or more ranges are missing in opts, a default range is applied.
 • If v is a Vector, the plot options given in opts will be passed on to the appropriate plot command.
 • If v is a list of Vectors, then the appropriate plotting command is invoked for each Vector in v with the plot options given in opts.
 – To visually distinguish these Vectors in the plot, the colour plot option can be supplied as a list. If this is done, Vectors in v will be plotted using respective colours from this list. In particular, the colour list and the list of Vectors v must have the same size.
 – Note that the colour option can also be given as color. For more information, please see plot/color and plot/colornames.
 • Use PlotPositionVector to plot position Vectors.

Examples

 > $\mathrm{with}\left(\mathrm{Student}[\mathrm{VectorCalculus}]\right):$
 > $\mathrm{vs1}≔\mathrm{VectorSpace}\left({'\mathrm{cartesian}'}_{x,y},\left[0,0\right]\right):$
 > $\mathrm{vs2}≔\mathrm{VectorSpace}\left({'\mathrm{cartesian}'}_{x,y},\left[1,2\right]\right):$

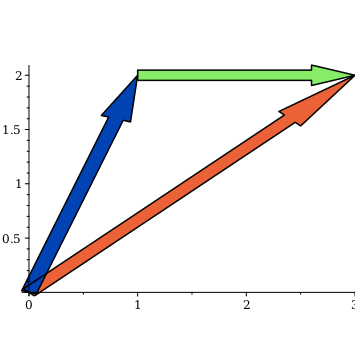

 > $\mathrm{PlotVector}\left(\left[\mathrm{vs1}:-\mathrm{Vector}\left(\left[1,2\right]\right),\mathrm{vs1}:-\mathrm{Vector}\left(\left[3,2\right]\right),\mathrm{vs2}:-\mathrm{Vector}\left(\left[2,0\right]\right)\right],\mathrm{scaling}=\mathrm{constrained}\right)$

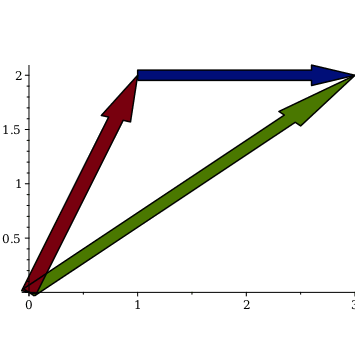

 > $\mathrm{PlotVector}\left(\left[\mathrm{vs1}:-\mathrm{Vector}\left(\left[1,2\right]\right),\mathrm{vs1}:-\mathrm{Vector}\left(\left[3,2\right]\right),\mathrm{vs2}:-\mathrm{Vector}\left(\left[2,0\right]\right)\right],\mathrm{color}=\left["Niagara Red","Niagara Green","Niagara Blue"\right],\mathrm{scaling}=\mathrm{constrained}\right)$

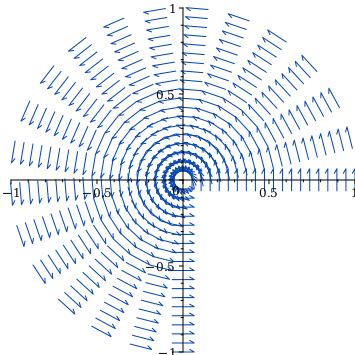

 > $\mathrm{PlotVector}\left(\mathrm{VectorField}\left(⟨0,1⟩,{\mathrm{polar}}_{r,t}\right),r=0..1,t=0..\frac{3\mathrm{π}}{2},\mathrm{axes}=\mathrm{normal}\right)$
