GraphTheory[SpecialGraphs]

 BidiakisCube
 construct Bidiakis cube

 Calling Sequence BidiakisCube()

Description

 • The BidiakisCube() command returns the Bidiakis cube, a 3-regular graph with 12 vertices and 18 edges.
 • The Bidiakis cube is a cubic Hamiltonian graph and its girth is 4.

Examples

 > $\mathrm{with}\left(\mathrm{GraphTheory}\right):$
 > $\mathrm{with}\left(\mathrm{SpecialGraphs}\right):$
 > $B≔\mathrm{BidiakisCube}\left(\right)$
 ${B}{≔}{\mathrm{Graph 1: an undirected graph with 12 vertices and 18 edge\left(s\right)}}$ (1)
 > $\mathrm{IsRegular}\left(B\right)$
 ${\mathrm{true}}$ (2)

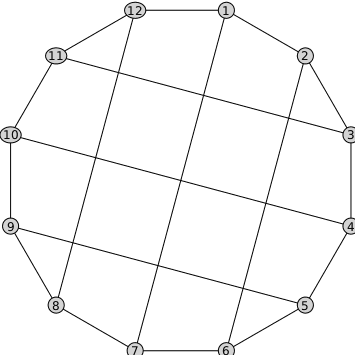

 > $\mathrm{DrawGraph}\left(B\right)$

References

 "Bidiakis cube", Wikipedia. http://en.wikipedia.org/wiki/Bidiakis_cube

Compatibility

 • The GraphTheory[SpecialGraphs][BidiakisCube] command was introduced in Maple 2021.
 • For more information on Maple 2021 changes, see Updates in Maple 2021.
