In Maple, there are at least three ways to obtain the required derivative.
Initialize
|
•
|
Tools≻Load Package: Student Calculus 1
|
|
Loading Student:-Calculus1
|
Solution #1
|
•
|
Type the function to be differentiated.
|
•
|
Context Panel: Differentiate≻With Respect To≻
|
|
|
Solution #2
|
•
|
Expression palette: Differentiation template
|
•
|
Context Panel: Evaluate and Display Inline
|
|
=
|
Solution #3 (stepwise)
|
•
|
Expression palette: Differentiation template
Select as the differentiation variable and enter the function to be differentiated.
|
•
|

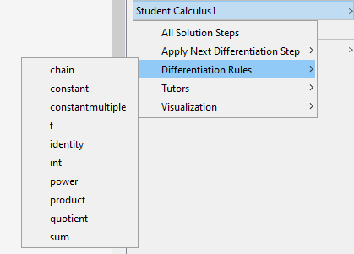

Context Panel: Student Calculus1≻All Solution Steps
|
|
|
•
|
Alternatively, an interactive stepwise solution is available via the Context Panel, as shown in the figure to the right.
|
|
|
|
|
A stepwise solution can be generated interactively with the

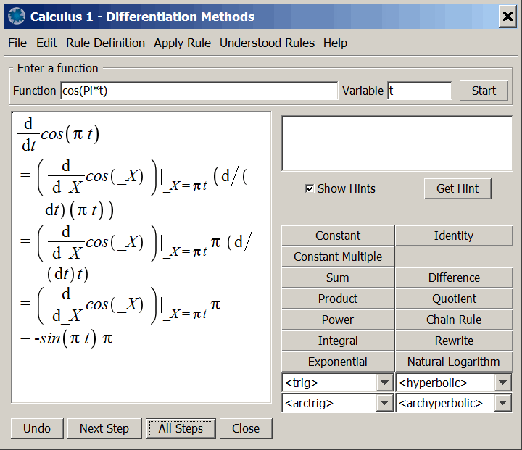

tutor. To apply a differentiation rule, click on the appropriate button. Figure 2.7.1(a) shows the tutor with a completed solution. Clicking the Close button returns an annotated version of this stepwise solution.
|
Figure 2.7.1(a) Differentiation Methods tutor applied to
|
|
|
