Hiding and Displaying Palettes
You can customize what palettes are visible in the Library Components tab of the MapleSim window.
To hide a palette:

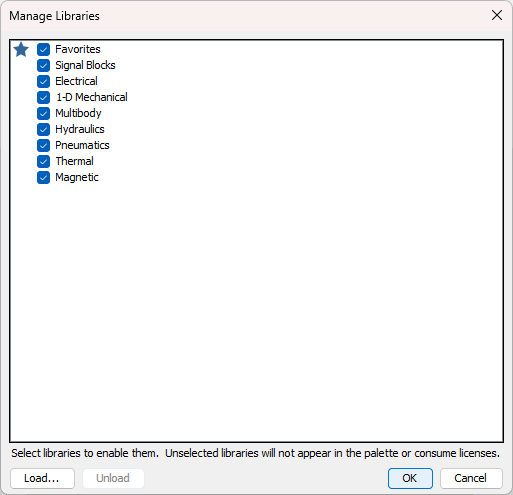

From the Tools menu, select Manage Libraries... The Manage Libraries window appears.
Clear the check box beside the name of the palette that you want to hide.
Click OK. The palette is removed from the MapleSim window.
Unselected libraries will not appear in the palette. For add-on libraries, when unselected they will not consume licenses.
To display a palette that was hidden:
Select the check box beside the name of the palette that you want to display.
Click OK. The palette is displayed in the MapleSim window.
