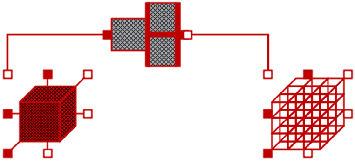

Name

Description

Modelica ID

$\mathrm{port\_node}$

Thermal port of Node side

port_node

$\mathrm{port\_shape}\left[i\right]$

i-th thermal port of Shape side

The total number of i is determined by Nodes_Shape[1]*[2]*[3]

port_shape

Symbol

Default

Units

Description

Modelica ID

$\mathrm{Material\_\_Node}$

$\mathrm{SolidPropertyData1}$

$-$

Solid material property data

Material_node

$\frac{W}{m\cdot K}$

Material.k is the thermal conductivity of the material

Material_node.k

$\frac{J}{\mathrm{kg}\cdot K}$

Material.cp is the specific heat capacity of the material

Material_node.cp

$\frac{\mathrm{kg}}{m^3}$

Material.rho is the density of the material

Material_node.rho

$\mathrm{L\_\_Node}$

$1$

$m^{}$

Length of cubic

L_node

$\mathrm{W\_\_Node}$

$1$

$m^{}$

Width of cubic

W_node

$\mathrm{H\_\_Node}$

$1$

$m^{}$

Height of cubic

H_node

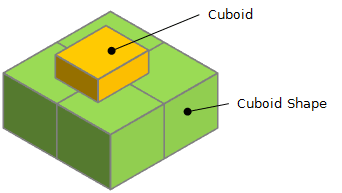

$\mathrm{Position\_\_Node}$

$\left[0\,0\,0\right]$

$m$

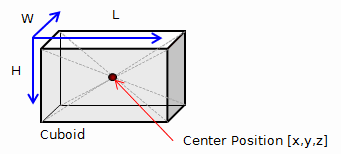

Center position of the Cuboid [X, Y, Z].

pos_node[3]

$\mathrm{Material\_\_Shape}$

$\mathrm{SolidPropertyData1}$

$-$

Solid material property data

Material_node

$\frac{W}{m\cdot K}$

Material.k is the thermal conductivity of the material

Material_node.k

$\frac{J}{\mathrm{kg}\cdot K}$

Material.cp is the specific heat capacity of the material

Material_node.cp

$\frac{\mathrm{kg}}{m^3}$

Material.rho is the density of the material

Material_node.rho

$\mathrm{L\_\_Shape}$

$1$

$m^{}$

Length of cubic

L_shape

$\mathrm{W\_\_Shape}$

$1$

$m^{}$

Width of cubic

W_shape

$\mathrm{H\_\_Shape}$

$1$

$m^{}$

Height of cubic

H_shape

$\mathrm{Nodes\_\_Shape}$

[5, 3, 3]

Number of nodes [L, W, H]

$\mathrm{numNode}\left[3\right]$

$\mathrm{Position\_\_Shape}$

$\left[0\,0\,0\right]$

$m$

Center position of the CuboidShape [X, Y, Z].

pos_shape[3]

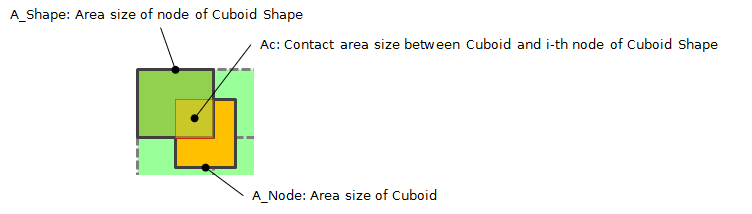

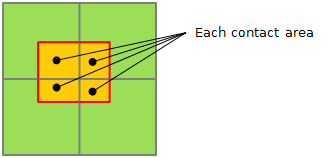

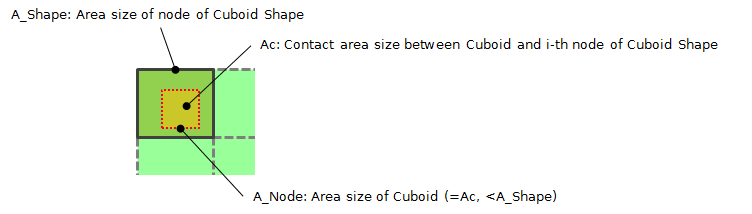

$\mathrm{L\_\_t}$

$0.001$

$m$

Optional. Threshold distance regarded as contacted

Lt

$\mathrm{G\_\_off}$

${10}^{-7}$

$\frac{W}{K}$

Optional. Constant thermal conductance of material which is used for representing the path without heat flow

Goff
