Multi Prescribed Heat Flow

Multiple prescribed heat flow boundary condition

	Description

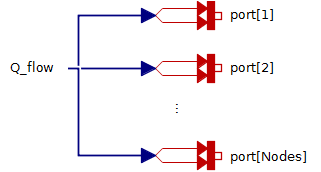

	The Multi Prescribed Heat Flow component generates a heat flow proportional to an input signal. The following example uses Prescribed Heat Flow components to illustrate the behavior of Multi Prescribed Heat Flow component.

	Equations
	(For details, see Prescribed Heat Flow help).

Connections

Name	Description	Modelica ID
$port [i]$	i-th output heat port	port[]
$Q_{flow}$	Real input; heat flow in $W$	Q_flow

Parameters

Symbol	Default	Units	Description	Modelica ID
$T {}_{ref}$	$293.15$	$K$	Reference temperature	T_ref
$α$	$0$	$\frac{1}{K}$	Temperature coefficient of heat flow rate	alpha
$Nodes$	2	$-$	Number of parallel Prescribed Heat Flow	numNode
