CycleGraph - Maple Help

GraphTheory

 CycleGraph
 construct cycle graph
 PathGraph
 construct path graph

 Calling Sequence CycleGraph(n,opts) CycleGraph(V,opts) PathGraph(n,opts) PathGraph(V,opts)

Parameters

 n - positive integer V - list of vertices opts - (optional) one or more options as specified below

Options

 The opts argument can contain one or more of the options shown below.
 • directed=true or false
 This option specifies whether the resulting graph should be directed. The default is false.
 • layout=true or false
 This option specifies whether a default coordinate assignment for the vertices of the graph should be made. The default is true.

Description

 • CycleGraph(n) outputs a graph which is a cycle on n vertices labeled 1, 2, ..., n.
 • PathGraph(n) outputs a graph which is a path on n vertices labeled 1, 2, ..., n.
 • In both cases you can input the labels for the vertices as a list of integers, strings, or symbols.

Examples

 > $\mathrm{with}\left(\mathrm{GraphTheory}\right):$
 > $C≔\mathrm{CycleGraph}\left(4\right)$
 ${C}{≔}{\mathrm{Graph 1: an undirected unweighted graph with 4 vertices and 4 edge\left(s\right)}}$ (1)
 > $\mathrm{Edges}\left(C\right)$
 $\left\{\left\{{1}{,}{2}\right\}{,}\left\{{1}{,}{4}\right\}{,}\left\{{2}{,}{3}\right\}{,}\left\{{3}{,}{4}\right\}\right\}$ (2)

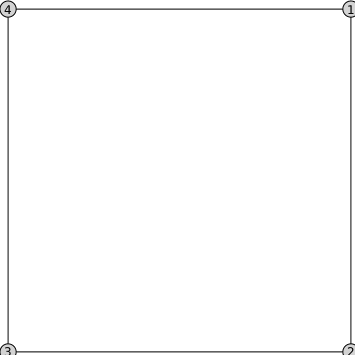

 > $\mathrm{DrawGraph}\left(C\right)$
 > $P≔\mathrm{PathGraph}\left(\left[a,b,c,d\right]\right)$
 ${P}{≔}{\mathrm{Graph 2: an undirected unweighted graph with 4 vertices and 3 edge\left(s\right)}}$ (3)
 > $\mathrm{Edges}\left(P\right)$
 $\left\{\left\{{a}{,}{b}\right\}{,}\left\{{b}{,}{c}\right\}{,}\left\{{c}{,}{d}\right\}\right\}$ (4)

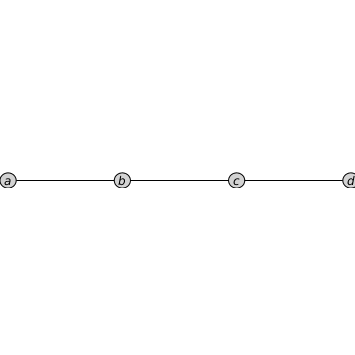

 > $\mathrm{DrawGraph}\left(P\right)$

Compatibility

 • The GraphTheory[CycleGraph] and GraphTheory[PathGraph] commands were updated in Maple 2021.
 • The directed and layout options were introduced in Maple 2021.
