The command HueSpread generates a list of evenly spaced colors around the HSV color wheel. The input color will be included in the middle of the list.

If color is a shade of gray, then the empty list is returned.

$\mathrm{with}\left(\mathrm{ColorTools}\right)\:$

$\mathrm{HueSpread}\left(\mathrm{Color}\left(''HSV''\,''Red''\right)\right)$

$\left[⟨HSV\; :\; 0.667\; 1\; 1⟩\,⟨HSV\; :\; 0.833\; 1\; 1⟩\,⟨HSV\; :\; 0\; 1\; 1⟩\,⟨HSV\; :\; 0.167\; 1\; 1⟩\,⟨HSV\; :\; 0.333\; 1\; 1⟩\right]$

$\mathrm{greenspread}≔\mathrm{HueSpread}\left(''Green''\,11\,\frac{1}{12}\right)$

$\mathrm{greenspread}≔\left[⟨RGB\; :\; 0.502\; 0\; 0.251⟩\,⟨RGB\; :\; 0.502\; 0\; 0⟩\,⟨RGB\; :\; 0.502\; 0.251\; 0⟩\,⟨RGB\; :\; 0.502\; 0.502\; 0⟩\,⟨RGB\; :\; 0.251\; 0.502\; 0⟩\,⟨RGB\; :\; 0\; 0.502\; 0⟩\,⟨RGB\; :\; 0\; 0.502\; 0.251⟩\,⟨RGB\; :\; 0\; 0.502\; 0.502⟩\,⟨RGB\; :\; 0\; 0.251\; 0.502⟩\,⟨RGB\; :\; 0\; 0\; 0.502⟩\,⟨RGB\; :\; 0.251\; 0\; 0.502⟩\right]$

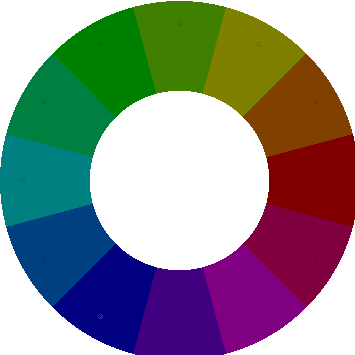

$\mathrm{HSVColorWheel}\left(\mathrm{greenspread}\right)$

$\mathrm{HueSpread}\left(''Black''\right)$

The ColorTools[HueSpread] command was introduced in Maple 16.

For more information on Maple 16 changes, see Updates in Maple 16.
