ColorTools
AnalogousSpread
create a number of nearby colors with hues spaced across 180 degrees
Calling Sequence
Parameters
Description
Examples
Compatibility
AnalogousSpread(color, number)
color
-
color format recognized by ColorTools
number
positive integer; number of colors to return
The command AnalogousSpread generates a list of evenly spaced colors across one half of the HSV color wheel. The input color will be included in the middle of the list.
If color is a shade of gray, then the empty list is returned.
withColorTools:
AnalogousSpreadColorHSV,Red,3
⟨HSV : 0.875 1 1⟩,⟨HSV : 0 1 1⟩,⟨HSV : 0.125 1 1⟩
greenspread≔AnalogousSpreadGreen,11
greenspread≔⟨RGB : 0.502 0.376 0⟩,⟨RGB : 0.502 0.502 0⟩,⟨RGB : 0.376 0.502 0⟩,⟨RGB : 0.251 0.502 0⟩,⟨RGB : 0.125 0.502 0⟩,⟨RGB : 0 0.502 0⟩,⟨RGB : 0 0.502 0.125⟩,⟨RGB : 0 0.502 0.251⟩,⟨RGB : 0 0.502 0.376⟩,⟨RGB : 0 0.502 0.502⟩,⟨RGB : 0 0.376 0.502⟩

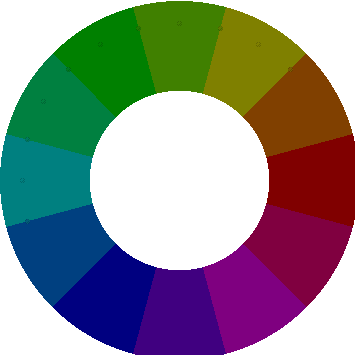

HSVColorWheelgreenspread
The ColorTools[AnalogousSpread] command was introduced in Maple 16.
For more information on Maple 16 changes, see Updates in Maple 16.
