Thermodynamic Calculations of  Two-Stage Vapor Compression Refrigeration Cycle with Flash Chamber and Separate Vapor Mixing Intercooler

Author: Volodymyr Voloshchuk

Vl.volodya@gmail.com

Introduction


In the event that a high COP of a refrigeration cycle is of greater importance compared to other factors, it is possible to significantly increase the COP of a basic cycle through the use of a multistage vapor compression cycle. This is especially true when the pressure ratio between the heat rejection and heat absorption pressures is large 5 or more.
Multistaging involves one or more intermediate pressures between the heat rejection and heat absorption pressures, and a series of compressors operating between successive pressure intervals.

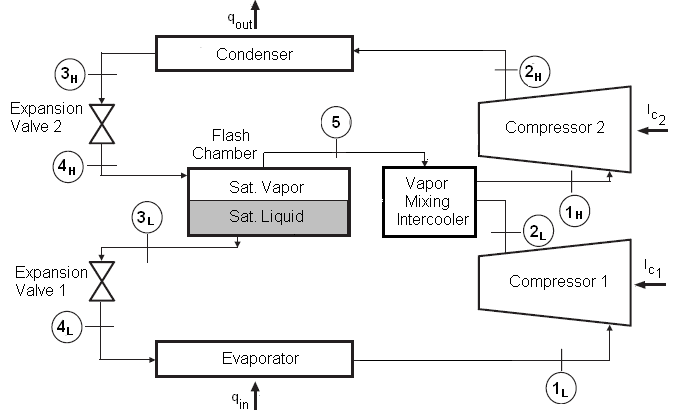

One type of multi-compressor vapor compression cycle includes a mixing chamber where saturated vapor from the flash chamber mixes with the vapor leaving the low pressure stage compressor. This vapor-mixing chamber acts as a regenerative intercooler since it cools the superheated vapor leaving the low-pressure stage compressor using lower temperature saturated workin fluid, mixing the two prior to the next stage of compression.

This type of refrigeration cycle is analysed in the following calculation.

Creation functions on properties and processes of working fluids

>

restart
>

with(ThermophysicalData); with(Units[Standard]); with(plots)



Vapor pressure on the saturated line as a function of temperature

>

PSVTwf := proc (T, wf) options operator, arrow; Property(P, temperature = T, Q = 1, wf) end proc



Liquid pressure on the saturated line as a function of temperature

>

PSLTwf := proc (T, wf) options operator, arrow; Property(P, temperature = T, Q = 0, wf) end proc



Liquid temperature on the saturated line as a function of pressure

>

TSLPwf := proc (p, wf) options operator, arrow; Property(T, pressure = p, Q = 0, wf) end proc



Vapor temperature on the saturated line as a function of pressure

>

TSVPwf := proc (p, wf) options operator, arrow; Property(T, pressure = p, Q = 1, wf) end proc



Liquid specific enthalpy on the saturated line as a function of temperature

>

HSLTwf := proc (T, wf) options operator, arrow; Property(enthalpy, temperature = T, Q = 0, wf) end proc



Vapor specific enthalpy on the saturated line as a function of temperature

>

HSVTwf := proc (T, wf) options operator, arrow; Property(enthalpy, temperature = T, Q = 1, wf) end proc



Liquid specific enthalpy on the saturated line as a function of pressure

>

HSLPwf := proc (p, wf) options operator, arrow; Property(enthalpy, pressure = p, Q = 0, wf) end proc



Vapor specific enthalpy on the saturated line as a function of pressure

>

HSVPwf := proc (p, wf) options operator, arrow; Property(enthalpy, pressure = p, Q = 1, wf) end proc



Liquid specific entropy on the saturated line as a function of temperature

>

SSLTwf := proc (T, wf) options operator, arrow; Property(entropy, temperature = T, Q = 0, wf) end proc



Vapor specific entropy on the saturated line as a function of temperature

>

SSVTwf := proc (T, wf) options operator, arrow; Property(entropy, temperature = T, Q = 1, wf) end proc



Liquid specific entropy on the saturated line as a function of pressure

>

SSLPwf := proc (p, wf) options operator, arrow; Property(entropy, pressure = p, Q = 0, wf) end proc



Vapor specific entropy on the saturated line as a function of pressure

>

SSVPwf := proc (p, wf) options operator, arrow; Property(entropy, pressure = p, Q = 1, wf) end proc



Temperature as a function of pressure and specific entropy

>

TPSwf := proc (p, s, wf) options operator, arrow; Property(T, pressure = p, entropy = s, wf) end proc



Temperature as a function of pressure and specific enthalpy

>

TPHwf := proc (p, h, wf) options operator, arrow; Property(T, pressure = p, enthalpy = h, wf) end proc



Specific enthalpy as a function of pressure and temperature

>

HPTwf := proc (p, T, wf) options operator, arrow; Property(H, pressure = p, temperature = T, wf) end proc



Specific entropy as a function of pressure and temperature

>

SPTwf := proc (p, T, wf) options operator, arrow; Property(S, pressure = p, temperature = T, wf) end proc



>

HCOMPRESSIONPTPEFFwf := proc (p1, T1, p2, eff, wf) local h1, s1, s2_is, T2_is, h2_is; h1 := HPTwf(p1, T1, wf); s1 := SPTwf(p1, T1, wf); s2_is := s1; T2_is := TPSwf(p2, s2_is, wf); h2_is := HPTwf(p2, T2_is, wf); return h1+(h2_is-h1)/eff end proc





Input Data


Temperature of heat source

>

T__in := ((-10)+273.15)*Unit('K')

263.15*Units:-Unit(K)

 (3.1)

Temperature of heat consumption

>

T__out := (80+273.15)*Unit('K')

353.15*Units:-Unit(K)

 (3.2)

Temperature difference in the evaporator

>

`δT__EV` := 2*Unit('K')

2*Units:-Unit(K)

 (3.3)

Temperature difference in the condenser

>

`δT__CD` := 2*Unit('K')

2*Units:-Unit(K)

 (3.4)

Isentropic efficiency of the compressor

>

`η__comp` := .8

.8

 (3.5)

Pressure increase in compressor 1

>

`π__1` := 3

3

 (3.6)

Working fluid

>

wf := R134a

R134a

 (3.7)



Calculations


Temperature of  the working fluid at the evaporator outlet

>

`T__1,L` := T__in-`δT__EV`

261.15*Units:-Unit(K)

 (4.1)

Pressure of  the working fluid at the evaporator outlet

>

`p__1,L` := PSVTwf(`T__1,L`, wf)

185244.1558*Units:-Unit(Pa)

 (4.2)

Specific enthalpy of  the working fluid at the evaporator outlet

>

`h__1,L` := HSVTwf(`T__1,L`, wf)

391454.9993*Units:-Unit(J/kg)

 (4.3)

Specific entropy of  the working fluid at the evaporator outlet

>

`s__1,L` := SSVTwf(`T__1,L`, wf)

1734.794496*Units:-Unit(J/(kg*K))

 (4.4)

Pressure of  the working fluid at the flash intercooler outlet

>

`p__2,L` := `p__1,L`*`π__1`

555732.4674*Units:-Unit(Pa)

 (4.5)

Pressure of  the working fluid at the flash intercooler outlet

>

`p__3,L` := `p__2,L`



555732.4674*Units:-Unit(Pa)

 (4.6)



Temperature of  the working fluid at the flash intercooler outlet

>

`T__3,L` := TSLPwf(`p__3,L`, wf)

292.2364673*Units:-Unit(K)

 (4.7)

Specific enthalpy of  the working fluid at the flash intercooler outlet

>

`h__3,L` := HSLTwf(`T__3,L`, wf)

226184.5457*Units:-Unit(J/kg)

 (4.8)

Specific enthalpy of  the working fluid at the flash intercooler outlet

>

`s__3,L` := SSLTwf(`T__3,L`, wf)

1091.901396*Units:-Unit(J/(kg*K))

 (4.9)

Pressure of  the working fluid at the evaporator intlet

>

`p__4,L` := `p__1,L`

185244.1558*Units:-Unit(Pa)

 (4.10)

Specific enthalpy of  the working fluid at the evaporator intlet

>

`h__4,L` := `h__3,L`

226184.5457*Units:-Unit(J/kg)

 (4.11)

Temperature of  the working fluid at the evaporator intlet

>

`T__4,L` := TPHwf(`p__4,L`, `h__4,L`, wf)

261.1500000*Units:-Unit(K)

 (4.12)

Specific enthalpy of saturated liquid of  the working fluid at the evaporator inlet

>

h[sl, 4, L] := HSLPwf(`p__4,L`, wf)

184065.9050*Units:-Unit(J/kg)

 (4.13)

Quality of the working fluid at the evaporator intlet

>

x[4, L] := (`h__4,L`-h[sl, 4, L])/(`h__1,L`-h[sl, 4, L])



.2030899496

 (4.14)



Specific entropy of saturated liquid of  the working fluid at the evaporator inlet

>

`s__sl,4,L` := SSLPwf(`p__4,L`, wf)

940.6566660*Units:-Unit(J/(kg*K))

 (4.15)

Specific entropy of  the working fluid at the evaporator inlet

>

s[4, L] := `s__sl,4,L`+x[4, L]*(`s__1,L`-`s__sl,4,L`)

1101.938078*Units:-Unit(J/(kg*K))

 (4.16)

Specific entropy of  the working fluid at the compressor 1 outlet  after isentropic compression

>

s[2, L, is] := `s__1,L`



1734.794496*Units:-Unit(J/(kg*K))

 (4.17)



Temperature of  the working fluid at the compressor 1 outlet  after isentropic compression

>

T[2, L, is] := TPSwf(`p__2,L`, s[2, L, is], wf)



297.1375245*Units:-Unit(K)

 (4.18)



Specific enthalpy of  the working fluid at the compressor 1 outlet  after isentropic compression

>

h[2, L, is] := HPTwf(`p__2,L`, T[2, L, is], wf)



414101.3458*Units:-Unit(J/kg)

 (4.19)



Enhtalpy change in the compressor  after isentropic compression

>

l[c1, is] := h[2, L, is]-`h__1,L`



22646.3465*Units:-Unit(J/kg)

 (4.20)



Enhtalpy change in the compressor 1 after actual compression

>

l[c1] := (h[2, L, is]-`h__1,L`)/`η__comp`



28307.93312*Units:-Unit(J/kg)

 (4.21)



Specific enthalpy of  the working fluid at the compressor 1 outlet  after actual compression

>

h[2, L] := `h__1,L`+l[c1]



419762.9324*Units:-Unit(J/kg)

 (4.22)



Specific enthalpy of  the working fluid at the compressor 1 outlet  after actual compression

>

T[2, L] := TPHwf(`p__2,L`, h[2, L], wf)



302.9557886*Units:-Unit(K)

 (4.23)



Specific entropy of  the working fluid at the compressor 1 outlet  after actual compression

>

s[2, L] := SPTwf(`p__2,L`, T[2, L], wf)



1753.664457*Units:-Unit(J/(kg*K))

 (4.24)



Pressure of  the working fluid at the vapor mixing intercooler inlet

>

p__5 := `p__3,L`



555732.4674*Units:-Unit(Pa)

 (4.25)



Temperature of  the working fluid at the vapor mixing intercooler inlet

>

T[5] := TSVPwf(p__5, wf)



292.2364673*Units:-Unit(K)

 (4.26)



Specific enthalpy of  the working fluid at the vapor mixing intercooler inlet

>

h[5] := HSVTwf(T[5], wf)



409265.9141*Units:-Unit(J/kg)

 (4.27)



Specific entropy of  the working fluid at the vapor mixing intercooler inlet

>

s[5] := SSVTwf(T[5], wf)



1718.385045*Units:-Unit(J/(kg*K))

 (4.28)



Temperature of the working fluid at the condenser outlet

>

`T__3.H` := T__out-`δT__CD`

351.15*Units:-Unit(K)

 (4.29)

Pressure of  the working fluid at the condenser outlet

>

p[3, H] := PSLTwf(`T__3.H`, wf)



2522849.986*Units:-Unit(Pa)

 (4.30)



Specific enthalpy of  the working fluid at the condenser outlet

>

h[3, H] := HSLTwf(`T__3.H`, wf)



318627.2633*Units:-Unit(J/kg)

 (4.31)



Specific entropy of  the working fluid at the condenser outlet

>

s[3, H] := SSLTwf(`T__3.H`, wf)



1373.288420*Units:-Unit(J/(kg*K))

 (4.32)



Pressure of  the working fluid at the compressor 2 outlet

>

p[2, H] := p[3, H]



2522849.986*Units:-Unit(Pa)

 (4.33)



Pressure of  the working fluid at the compressor 2 inlet

>

p[1, H] := `p__2,L`



555732.4674*Units:-Unit(Pa)

 (4.34)



Pressure increase in the compressor 2

>

`π__2` := p[2, H]/p[1, H]



4.539684351

 (4.35)



Specific enthalpy of  the working fluid at the flash chamber intlet

>

`h__4,H` := h[3, H]

318627.2633*Units:-Unit(J/kg)

 (4.36)

Pressure of  the working fluid at the flash chamber intlet

>

`p__4,H` := `p__3,L`

555732.4674*Units:-Unit(Pa)

 (4.37)

Temperature of  the working fluid at the flash chamber intlet

>

`T__4,H` := TPHwf(`p__4,H`, `h__4,H`, wf)

292.2364673*Units:-Unit(K)

 (4.38)

Specific enthalpy of saturated liquid of  the working fluid at the flash chamber inlet

>

h[sl, 4, H] := HSLPwf(`p__4,H`, wf)

226184.5457*Units:-Unit(J/kg)

 (4.39)

Specific enthalpy of saturated vapor of  the working fluid at the flash chamber inlet

>

h[ss, 4, H] := HSVPwf(`p__4,H`, wf)

409265.9141*Units:-Unit(J/kg)

 (4.40)

Quality of the working fluid at the flash chamber intlet

>

x[4, H] := (`h__4,H`-h[sl, 4, H])/(h[ss, 4, H]-h[sl, 4, H])



.5049269536

 (4.41)



Specific entropy of saturated liquid of  the working fluid at the flash chamber inlet

>

`s__sl,4,H` := SSLPwf(`p__4,H`, wf)

1091.901396*Units:-Unit(J/(kg*K))

 (4.42)

Specific entropy of saturated liquid of  the working fluid at the flash chamber inlet

>

`s__ss,4,L` := SSVPwf(`p__4,H`, wf)

1718.385045*Units:-Unit(J/(kg*K))

 (4.43)

Specific entropy of  the working fluid at the flash chamber inlet

>

s[4, H] := `s__sl,4,H`+x[4, H]*(`s__ss,4,L`-`s__sl,4,H`)

1408.229876*Units:-Unit(J/(kg*K))

 (4.44)

Ratio of mass flow rates between the high pressure circuit and that of the low pressure circuit

>

phi := (h[5]-`h__3,L`)/(h[5]-`h__4,H`)



2.019903946

 (4.45)



Specific enthalpy of  the working fluid at the compressor 2 intlet

>

`h__1,H` := ((phi-1)*h[5]+h[2, L])/phi



414462.7049*Units:-Unit(J/kg)

 (4.46)



Temperature of  the working fluid at the compressor 2 intlet

>

`T__1,H` := TPHwf(p[1, H], `h__1,H`, wf)



297.5067253*Units:-Unit(K)

 (4.47)



Specific entropy of  the working fluid at the compressor 2 intlet

>

s[1, H] := SPTwf(p[1, H], `T__1,H`, wf)



1736.009875*Units:-Unit(J/(kg*K))

 (4.48)



Specific entropy of  the working fluid at the compressor 2 outlet  after isentropic compression

>

s[2, H, is] := s[1, H]



1736.009875*Units:-Unit(J/(kg*K))

 (4.49)



Temperature of  the working fluid at the compressor 2 outlet  after isentropic compression

>

T[2, H, is] := TPSwf(p[2, H], s[2, H, is], wf)



361.6458604*Units:-Unit(K)

 (4.50)



Specific enthalpy of  the working fluid at the compressor 2 outlet  after isentropic compression

>

h[2, H, is] := HPTwf(p[2, H], T[2, H, is], wf)



446239.4514*Units:-Unit(J/kg)

 (4.51)



Enhtalpy change in the compressor 2 after isentropic compression

>

l[c2, is] := h[2, H, is]-`h__1,H`



31776.7465*Units:-Unit(J/kg)

 (4.52)



Enhtalpy change in the compressor 2 after actual compression

>

l[c2] := (h[2, H, is]-`h__1,H`)/`η__comp`



39720.93312*Units:-Unit(J/kg)

 (4.53)



Specific enthalpy of  the working fluid at the compressor 2 outlet  after actual compression

>

h[2, H] := `h__1,H`+l[c2]



454183.6380*Units:-Unit(J/kg)

 (4.54)



Specific enthalpy of  the working fluid at the compressor 2 outlet  after actual compression

>

T[2, H] := TPHwf(p[2, H], h[2, H], wf)



367.2000108*Units:-Unit(K)

 (4.55)



Specific entropy of  the working fluid at the compressor 2 outlet  after actual compression

>

s[2, H] := SPTwf(p[2, H], T[2, H], wf)



1757.811397*Units:-Unit(J/(kg*K))

 (4.56)



Heat rejection in the condenser referred to 1 kg of refrigerant in the low pressure circuit

>

q[out] := (h[2, H]-h[3, H])*phi

273810.8562*Units:-Unit(J/kg)

 (4.57)

Heat addition in the evaporator referred to 1 kg of refrigerant in the low pressure circuit

>

`#msub(mi("q",fontstyle = "normal"),mo("in"))` := `h__1,L`-`h__4,L`

165270.4536*Units:-Unit(J/kg)

 (4.58)

The total work of compressors referred to 1 kg of the working fluid in the low pressure circuit

>

l[c] := phi*l[c2]+l[c1]

108540.4027*Units:-Unit(J/kg)

 (4.59)

Coefficent of performance of a refrigerator

>

COP[R] := `#msub(mi("q",fontstyle = "normal"),mo("in"))`/l[c]



1.522662985

 (4.60)



Coefficent of performance of a heat pump

>

COP[HP] := q[out]/l[c]

2.522662984

 (4.61)

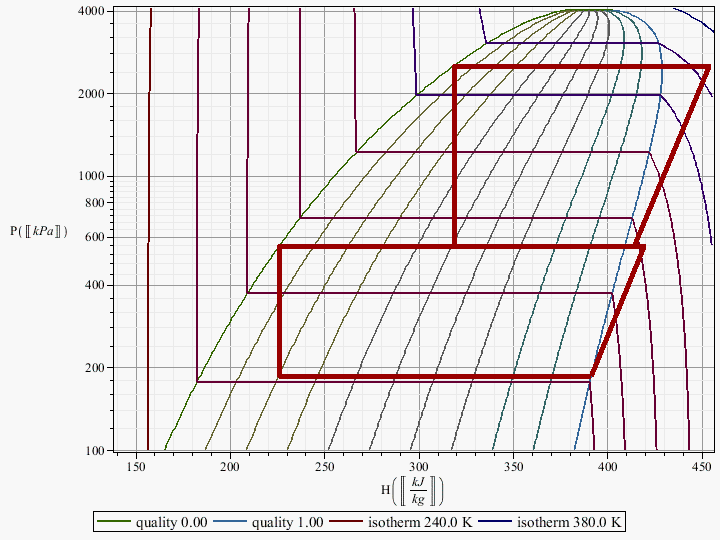

Plot the Refrigeration Cycle on a P-h-T Chart

>

phtChart := PHTChart(wf, 100*Unit('kPa') .. 4100*Unit('kPa'))
>

pts1 := `~`[`~`[convert]]([[`h__1,L`, `p__1,L`], [h[2, L], `p__2,L`], [`h__3,L`, `p__3,L`], [`h__4,L`, `p__4,L`], [`h__1,L`, `p__1,L`]], unit_free)
>

cycle1 := pointplot(`~`[`*`](0.1e-2, pts1), connect = true, color = "DarkRed", thickness = 5)
>

pts2 := `~`[`~`[convert]]([[`h__1,H`, p[1, H]], [h[2, H], p[2, H]], [`h__4,H`, p[3, H]], [`h__4,H`, `p__4,H`], [`h__1,H`, p[1, H]]], unit_free)
>

cycle2 := pointplot(`~`[`*`](0.1e-2, pts2), connect = true, color = "DarkRed", thickness = 5)
>

display(phtChart, cycle1, cycle2)


>

``
