Introduction

In this worksheet, I use Maple to illustrate Section 11.6 of Kreyszig 's book: Advanced Engineering Mathematics.

Section 1: The Fourier transform

>	alias(u=u(x,t),U=U(k,t)):

>	Eq:=diff(u,t) - c^2*diff(u,`$`(x,2));

Take the Fourier transform in space (that is w.r.t the variable   ( )

>	Eq2:=subs(fourier(u,x,k)=U,fourier(Eq,x,k));

>	SU:=subs(_F1(k)=F(k),(dsolve(subs(Eq2),U)));

where is the fourier transform of the initial profile

So, the solution is the inverse Fourier transform of U:

>	Su:= u=invfourier(subs(SU,U),k,x);

With a little computation, we can further simplify this expression to

>	Su:=u=1/sqrt(Pi)*int(f(x+2*c*sqrt(t)*z)*exp(-z^2),z=-infinity..infinity);

This expression gives directly the solution in trems of the original profile. The other solution required the knowledge of F(k), obtained from a Fourier transform and then required an extra inverse Fourier transform.

Let us see some example now:

Section 2: The Gaussian profile: Animation

In this case, we are lucky. We can do the integral exactly!

>	f1:=y->exp(-y^2);assume(t,positive);assume(c,positive);

>	plot(f1(y),y=-3..3,thickness=3,color=blue);

>	Su1:=simplify(subs(f=f1,Su));

Let us plot and animate this profile (take )

>	Sol_u:=(x,t)->subs(subs(c=1/2,simplify(Su1)),u);

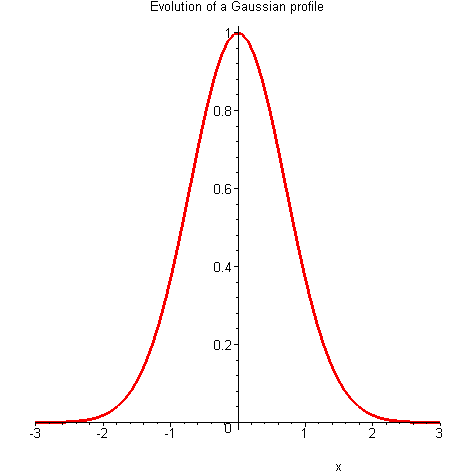

>	animate(Sol_u(x,t),x=-3..3,t=0..20,color=red,thickness=3,numpoints=60,title="Evolution of a Gaussian profile");

>

Section 3: A rectangular distribution: Animation

Take a profile equals to one between -1 and 1.

>	f2:=y->Heaviside(y+1)-Heaviside(y-1);

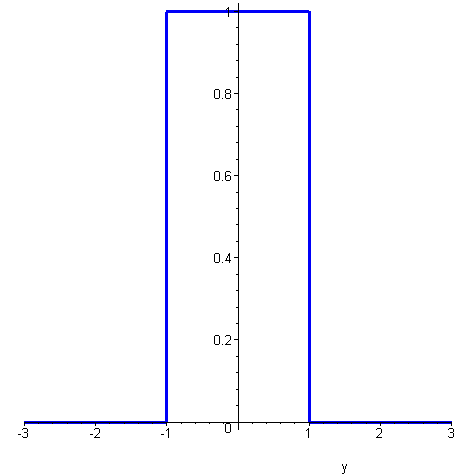

>	plot(f2(y),y=-3..3,thickness=3,color=blue);

>	Sol_u:=subs(c=1/2,simplify(subs(f=f2,c=1/2,Su)),u);

>	p1:=seq(plot(subs(t=i,Sol_u),x=-10..10,color=black,thickness=2),i=0.001..12): p2:=seq(plot(subs(t=6*i,Sol_u),x=-40..40,color=black,thickness=2),i=10..20):

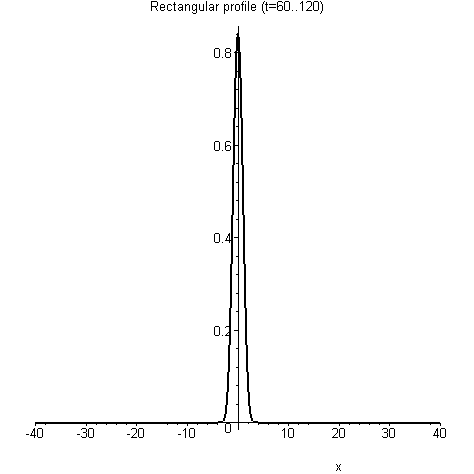

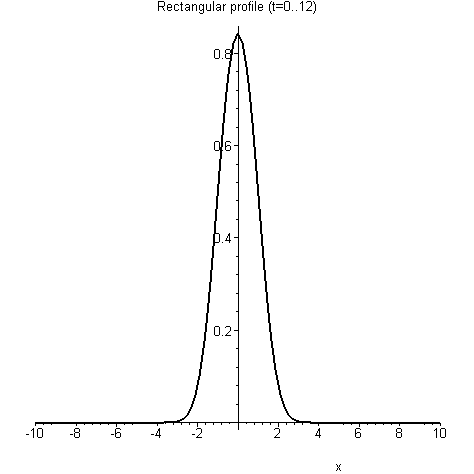

>	display([p1],title="Rectangular profile (t=0..12)"); display([p2],title="Rectangular profile (t=60..120)");

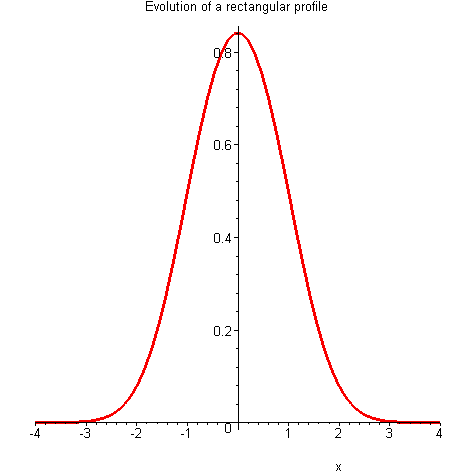

>	animate(Sol_u,x=-4..4,t=0.001..2,color=red,thickness=3,numpoints=60,title="Evolution of a rectangular profile");

We observe that the diffusion acts rapidly and smoothes the edge of the rectangle and the profiles evolves very rapidly to a Gaussian profile

Section 4: The triangular profile: Animation

Take a triangular asymmetric profile .

>	f2:=y->(1-y)*(Heaviside(y)-Heaviside(y-1));

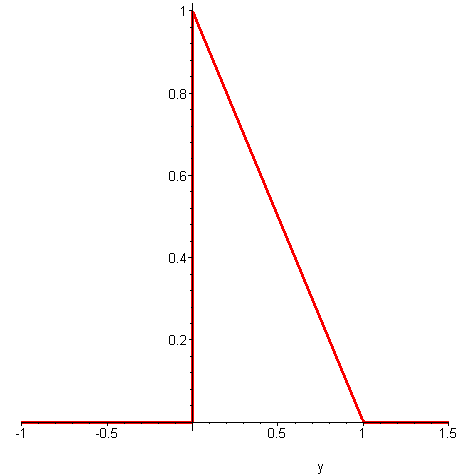

>	plot(f2(y),y=-1..1.5,thickness=3);

The exact solution is pretty intricate and we are lucky we have a software to compute it (Give it a try!!)

>	Sol_u:=subs(c=1/2,simplify(subs(f=f2,c=1/2,Su)),u);

>	p1:=seq(plot(subs(t=i,Sol_u),x=-10..10,color=black,thickness=2),i=0.001..12): p2:=seq(plot(subs(t=6*i,Sol_u),x=-40..40,color=black,thickness=2),i=10..20):

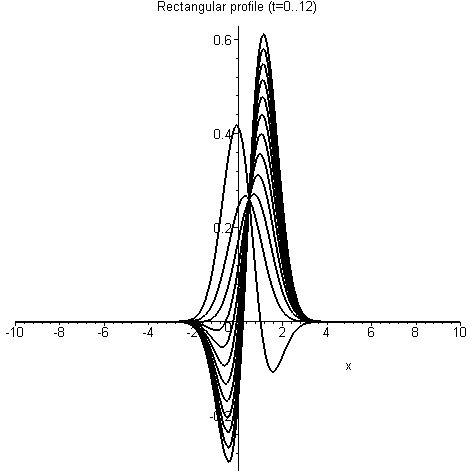

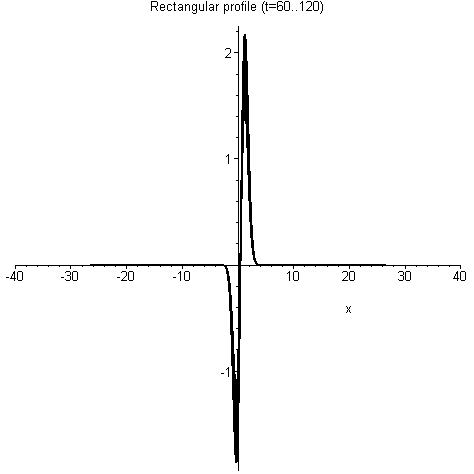

>	display([p1],title="Rectangular profile (t=0..12)"); display([p2],title="Rectangular profile (t=60..120)");

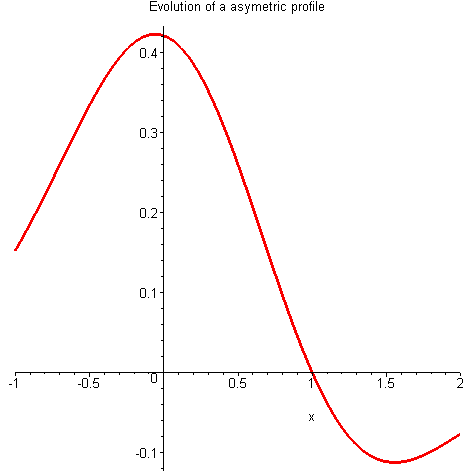

>	animate(Sol_u,x=-1..2,t=0.0000000001..2,color=red,thickness=3,numpoints=60,title="Evolution of a asymetric profile");

Here again, observe the rapid smoothing provided by the  term in the integral. Rapidly, the solution tends to a Gaussian profile centered around an average value.

 References

E. Kreyszig : Advanced Engineering Mathematics (8th Edition) John Wiley  New York (1999)
