The Three Reservoir Problem
Introduction
Three reservoirs at different elevations are connected through a piping network at a single point, with an outflow from the common junction. This application will calculate the flowrates, flow directions and head at the common junction. This is a classic problem in hydraulic engineering. Through an understanding of the concepts associated therein, many hydraulic challenges can be solved.
The Bernoulli equation (ignoring the losses associated with pipe fittings) for Reservoir 1 is
,
where z1 is the resevoir elevation, f1 is the friction factor, L1 and D1 are the pipe length and diameter, V1 is the liquid velocity and H is the head at the common junction. However, since flow can be either into or out of a reservoir (i.e. a positive or negative velocity), we rewrite the Bernoulli equation thus
.
Similar equations can be defined for the other reservoirs. These equations, along with the continuity equation,
and a correlation for the friction factor, can be used to find the flowrates, flow directions and the head at the junction.
Parameters
Liquid viscosity and density
Reservoir elevations
Lengths, diameters and cross-sectional areas of pipes connecting reservoirs to junction
Relative roughness of pipe
Outflow from junction
Gravitional constant
Friction Factor

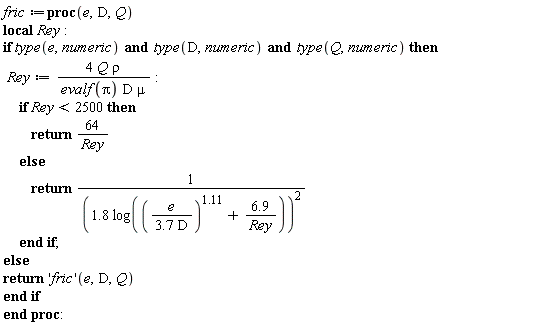

This procedure will return the laminar friction factor if the Reynolds number is below 2500, or the turbulent friction factor otherwise (with the Haaland equation)
Bernoulli Equations for the Three Reservoir System
Bernoulli analysis of system
Calculations of flowrates, flow directions and head at junction
Positive flowrates indicate flow out of a reservoir, while negative flowrates indicate flow into a reservoir.
